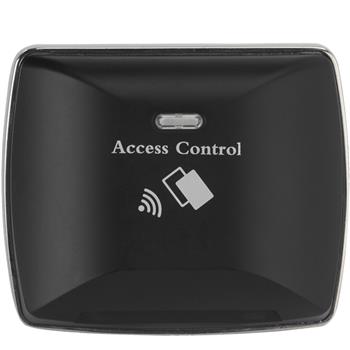

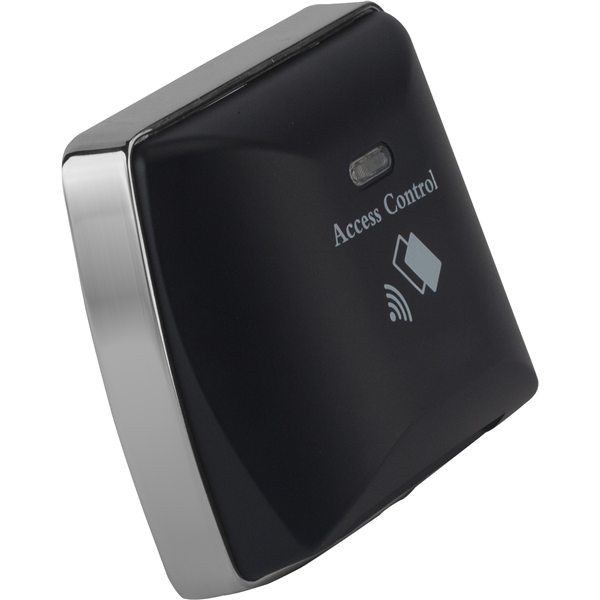

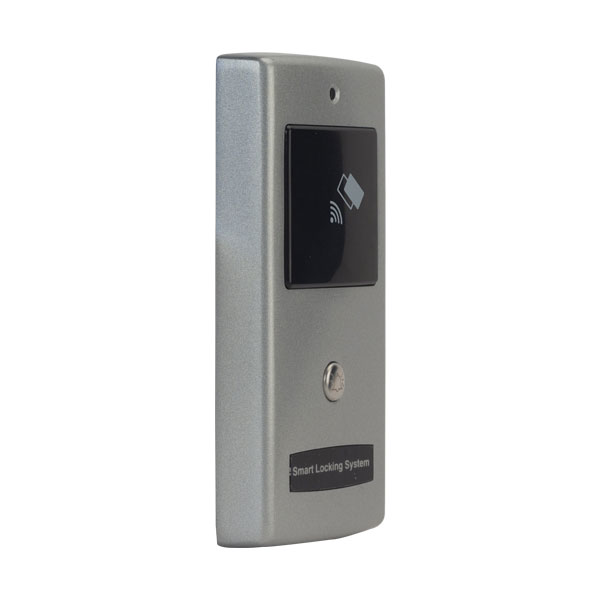

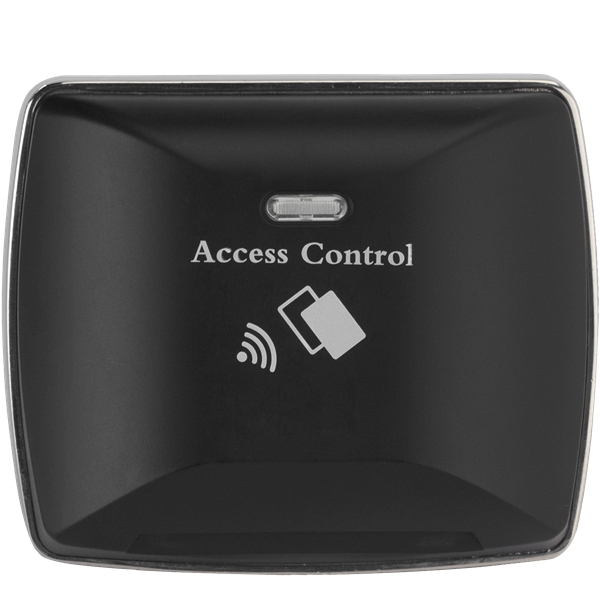

Door Control Unit
Door Control Unit 02
Door Control Unit 03
Door Control Unit 04

Door Control Unit

Descriptions:

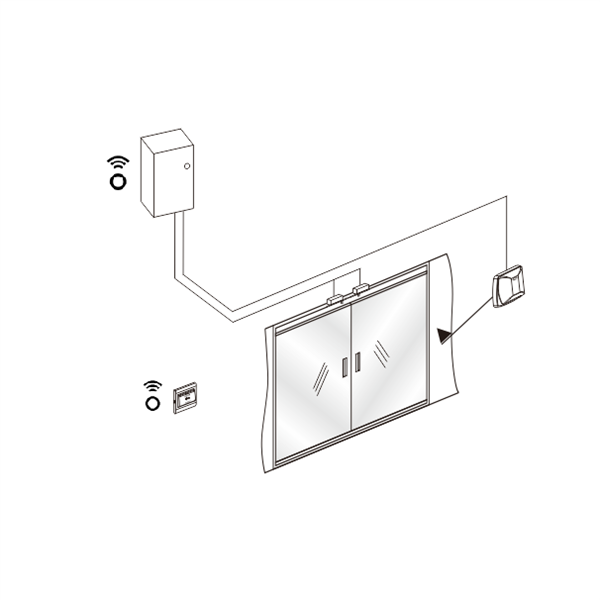

The Be-Tech Door Control Unit is the prefect solution to provide access control on common doors, such as parking barriers, health centers, gym room, conference room, staff entrances, guest night entrances and more, our Door Control Unit is fully compatible with Be-Tech electronic locking systems and provides better guest experience for your hotels.

Electrical Specifications:

DCU Model

MJM

2700M

-

Supply Voltage

18VDC

12VDC

-

Supply Current

6A

2A

-

Load current, output 1

Max. 3A @ 12VDC

Max. 3A @ 12VDC

Resistive load

Load current, output 2

Max. 3A @ 12VDC

-

Resistive load

Backup Power

Rechargeable battery

-

-



(capacity : 7000mAh)

DOWNLOAD

PRODUCT DETAIL

Features:

  • Modern reader design in matte black color.
  • Compatible with twins-reader mounting on passage door both side (optional to use).
  • Inward 'Door Exit' switch is available to simple "Touch and go" for hotel guests.
  • Compatible with BIS Hotel and BIS Locker systems.
  • Backup battery power supply is available to make sure Door Control Unit working property while suffering unstable power supply. (*)
  • (*)only for the door control unit model MJM
Cyber Digit Cam 07

Technical data:

  • Each complete unit, supplied individually packed, consists of:
  • Model MJM:
    1. Door Control Unit with reader.
    2. Relay box with backup power supply battery.
    3. External Power supply.
    4. Inward "Door Exit" switch.
  • Model 2700M:
    1. Door Control Unit with reader.
    2. External Power supply.
    3. Inward "Door Exit" switch.
  • Additional parts:
    1. Electronic drop bolt lock.
    2. Electronic magnet lock.

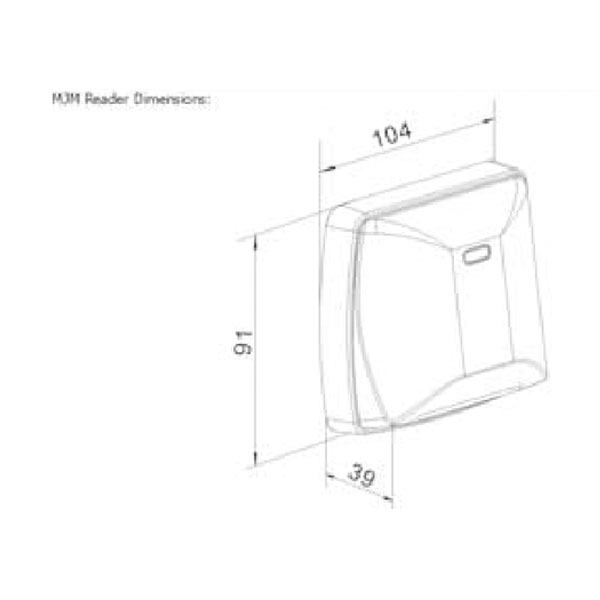

  • Dimension - MJM model:
    Height: 91 mm / 3,58 inch
    Width: 104 mm / 4,09 inch
    Depth: 39 mm / 1,54 inch

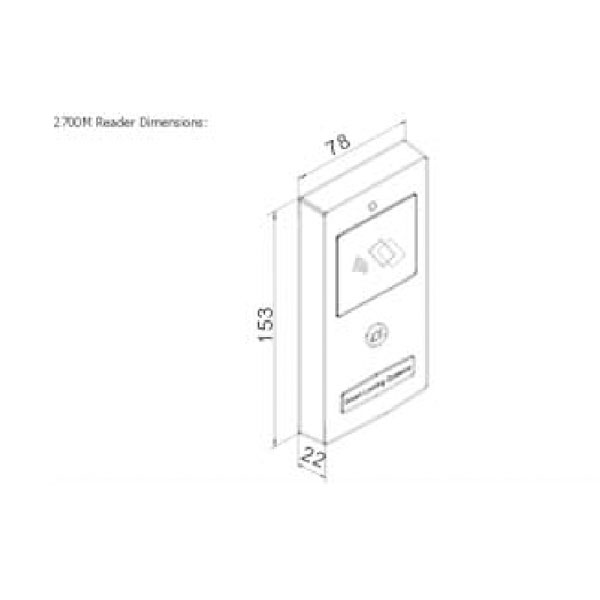

  • Dimension - 2700M model:
    Height: 153 mm / 6,02 inch
    Width: 78 mm / 3,07 inch
    Depth: 22 mm / 0,87 inch

Dimensions:

Door Control Unit 02
Door Control Unit 03
Door Control Unit 04

SPECIFICATIONS

Door Control Unit 05
Door Control Unit 06
Door Control Unit 07

Download

  • Download Door Control Unit_Datasheet_English_2013Jun20_LR
    171 KB
    Download
  • Download Electronic Hotel Locking System_Brochure_English_07Oct17_LR
    1.96 MB
    Download
