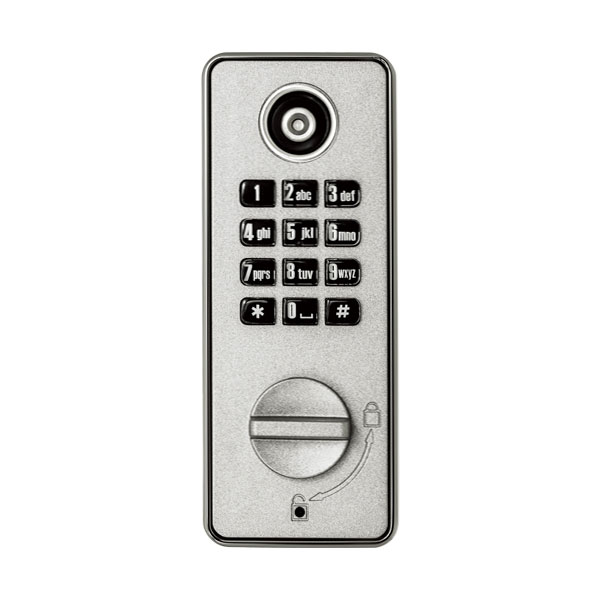

Electronic Cabinet Lock - Cyber Digit Cam

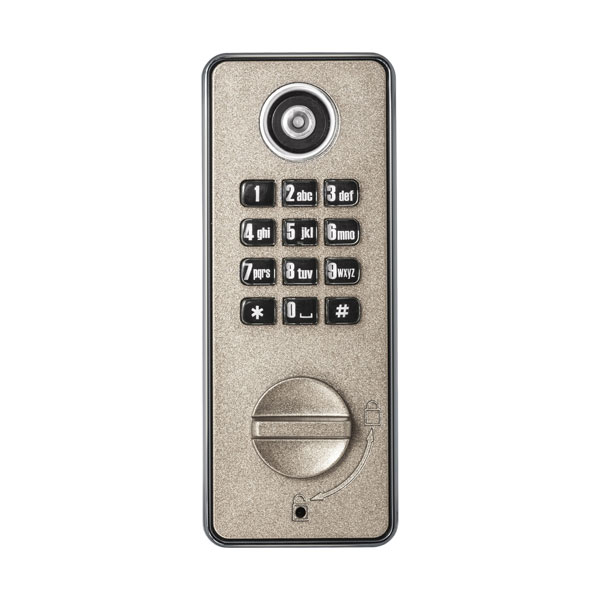

Cyber Digit Cam 02

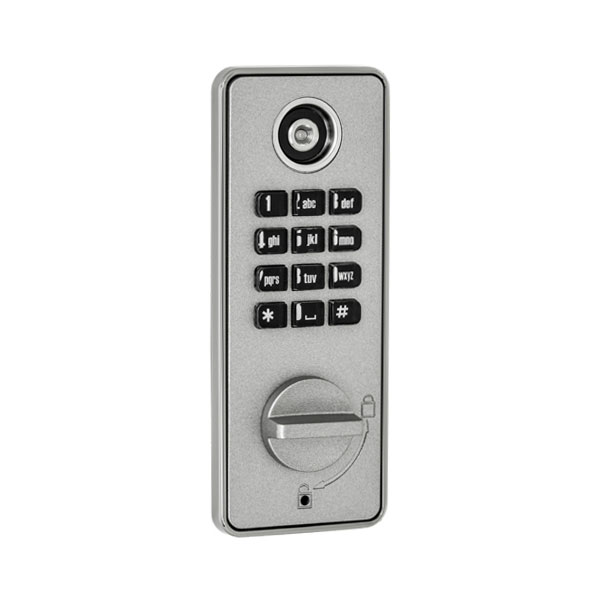

Cyber Digit Cam 03

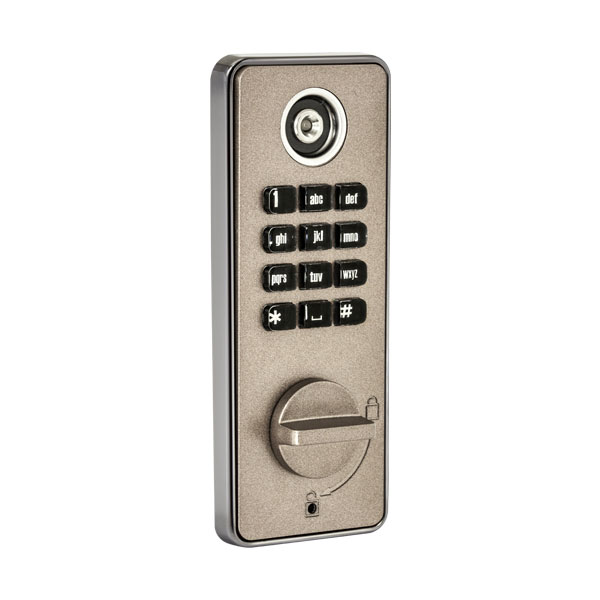

Cyber Digit Cam 04

Electronic Cabinet Lock - Cyber Digit Cam

Descriptions:

Be-Tech Cyber Digit Cam (C1515D) is a valuable electronic cam locks supplied as standard on a wide range of steel lockers cabinets and cupboards. The keyless locks are easy to fit, with the flat and fashion design, it provides high security and comfort for locker and cabinet instead of uncomfortable mechanical keys that require expensive maintenance.

Codes & iButton keys:

The locks is supplied without factory preset codes & iButton keys
iButton keys have to order separately
Owner key (Red): 1 group
Master key (Blue): 5 group
User code: 1 group
User key (Black): 1 group (Optional)

Program both iButton keys & codes after lock has been installed

DOWNLOAD

PRODUCT DETAIL

Technical Specification:

  • Power: 2 x 1.5 AAA Batteries
  • Operations: 10,000 Openings
  • Low battery: When lock signals "Low Battery" there will be 100 additional openings
  • Memory: Non-Volatile memory will be retained when changing batteries
  • Battery Override: A battery case can be plug in external socket
  • Material: ABS plastic
  • Door thickness: 0.6mm (0.024'') up to 2.5mm (0.098'')
  • Buttons: 12 individualsquare buttons
  • Functions: Private or Public
  • Fitting options: New or retrofit
  • Finish: Gray, Gold, Coffee
  • Accessories available:iButton, Override battery case
  • Codes & Keys: Cyber Digits Cam has 4 code & key levels
                             Owner key, Master key or Master code
                             And User code or User key
  • Unlocking feature: Manual
  • Net Weight: 240g
  • Gross Weight: 280g (1 lock / box)
  • Packing: 40 boxes / ctn. (40 locks / ctn)
  • Carton Size: 590mm x 303mm x 143mm

Functions:

  • Private Function
    This is the most common function and used where the same code will be repeatedly used, e.g a pupil in a school or an employee with the same locker in the workplace.
  • Public Function
    The locker locks operates with a single user code. The guest enters a personal code with 4~9 digit to locks the lock. The same code is entered to open the lock before being erased and ready for next user. This function is used for short term, multi occupancy applications, e.g a locker in a gym center.
Cyber Digit Cam 07

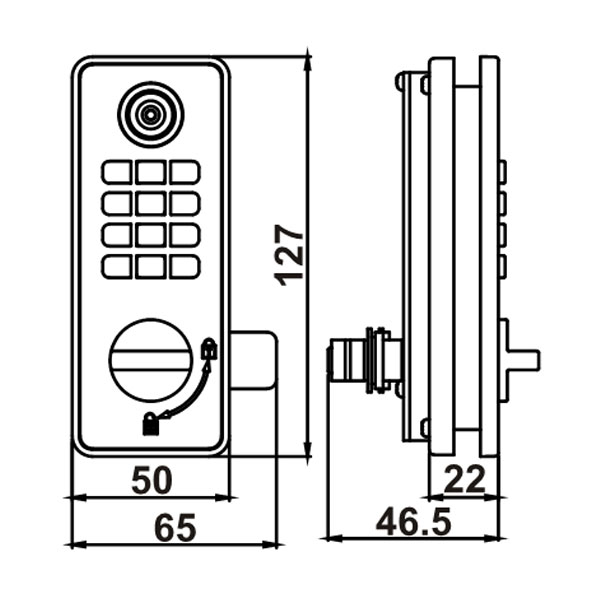

Dimensions:

Cyber Digit Cam 02
Cyber Digit Cam 03
Cyber Digit Cam 04

SPECIFICATIONS

Cyber Digit Cam 05
Cyber Digit Cam 06

Download

  • Download Cyber Digit Cam_CabinetLock_TechSpec_21Mar17_LR
    629 KB
    Download
  • Download Cyber Digit_CabinetLock_Brochure_24Apr17_LR
    2.06 MB
    Download
