Electronic Cabinet Lock - Cyber Digit Classic
Cyber Digit Classic 02
Cyber Digit Classic 03
Cyber Digit Classic 04

Electronic Cabinet Lock - Cyber Digit Classic

Descriptions:

All the benefits of the Be-Tech Cyber Digit Classic (3100DL) but tougher and more robust for challenging environment. With additional programming features, stainless steel material, and improved number of operations, the Cyber Digit Classic (3100DL) provides enhanced benefits to facilities managers looking to simplify access control without the need of keys.

Specification:

The locks is supplied without factory preset codes & iButton keys
iButton keys have to order separately
Owner key (Red): 1 group
Master key (Blue): 3 group
User code: 1 group
User key (Black): 1 group (Optional)

Program both iButton keys & codes after lock has been installed

DOWNLOAD

PRODUCT DETAIL

Technical Specification:

  • Power: 4 x 1.5 AA Batteries
  • Operations: 15,000 Openings
  • Low battery: When lock signals "Low Battery" there will be 100 additional openings
  • Memory: Non-Volatile memory will be retained when changing batteries
  • Battery Override: A battery case can be plug in external round socket
  • Material: Stainless steel
  • Door thickness: 12mm (0.47'') up to 22mm (0.87'')
  • Buttons: 12 individual square buttons
  • Functions: Private or Public
  • Fitting options: New or retrofit
  • Finish: Silver (Brushed Stainless Steel)
  • Accessories available: iButton, Override battery case
  • Codes & Keys: Cyber Digits Class has 4 code & key levels
                             Owner key, Master key
                             User code or User key
  • Unlocking feature: Automatic motor driving
  • Net Weight: 554g
  • Gross Weight: 1278g (2 locks / box)
  • Packing: 10 boxes / ctn. (20 locks / ctn)
  • Carton Size: 435mm x 245mm x 180mm

Functions:

  • Private Function
    This is the most common function and used where the same code will be repeatedly used, e.g a pupil in a school or an employee with the same locker in the workplace.
  • Public Function
    The locker locks operates with a single user code. The guest enters a personal code with 4~9 digit to locks the lock. The same code is entered to open the lock before being erased and ready for next user. This function is used for short term, multi occupancy applications, e.g a locker in a gym center.
Cyber Digit Classic 08

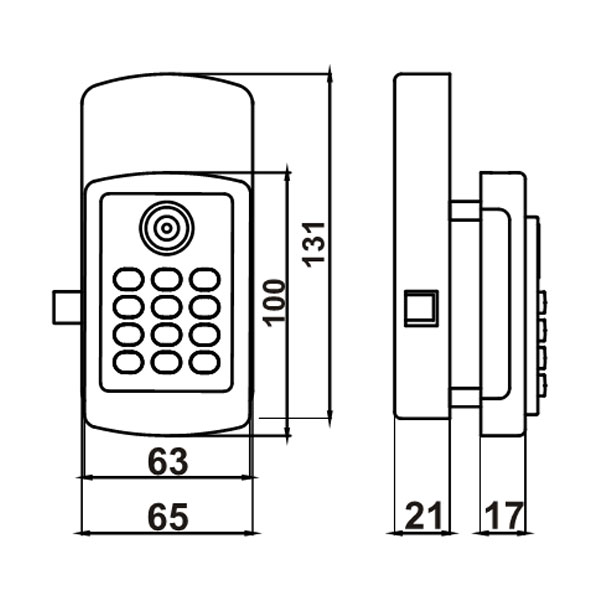

Dimensions:

Cyber Digit Classic 02
Cyber Digit Classic 03
Cyber Digit Classic 04

SPECIFICATIONS

Cyber Digit Classic 05
Cyber Digit Classic 06

Download

  • Download Cyber Digit Classic_CabinetLock_TechSpec_21Mar17_LR
    660 KB
    Download
  • Download Cyber Digit_CabinetLock_Brochure_24Apr17_LR
    2.06 MB
    Download
