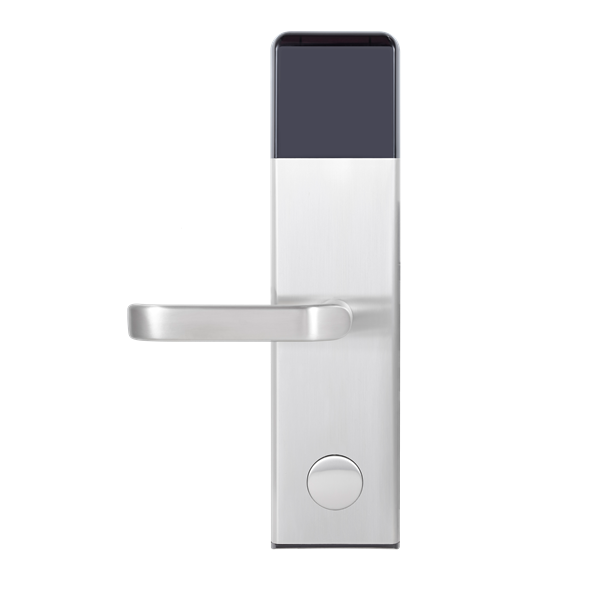

BASE RFID (9248 Series)

Features:

• Stand alone electronic lock with RFID technology.
• High security stainless steel mortise lockcase available in ANSI, AUS and EURO versions.
• Stainless steel handle with brushed surface.
• 3-point stainless steel latch construction with anti friction mechanism.
• Mortise equipped 20mm throw high strength deadbolt.
• Panic release function - the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.
• ADA compliant (guest with physical disabilities).
• Future proof re-programmable FL .ASH RAM lock memory.
• Powered by four AA alkaline batteries that provide up to 9 months normal life time.

RFID Specifications:

• 13.56MHz technology
• Compatible with the following standard : ISO 14443 A (MIFARE Classic)
• Eleven free sectors for future All-in-one card application use

Technical Data:

• Power :4 X 1.5V AA alkaline batteries
• Battery Location: Inside of the back lock
• Material
• Handles: Stainless steel
• Lock body: Stainless steel quality SUS304
• Metal Finishes:Silver
• Emergency Opening Options:Emergency Opening with Mechanical cicylinder
• Locking Mechanism：Electro-mechanical locking mechanism
• Door Thickness：35-80mm (only for EURO mortise)
• System Software Compatibility：BIS Hotel
• Storage Temperature：-40°C~80°C,non-condensing environment
• Tested Operating Temperature：Tested from :-20C~66°C
• Supported RFID Standard：ISO 14443 A (MIFARE Classic)
