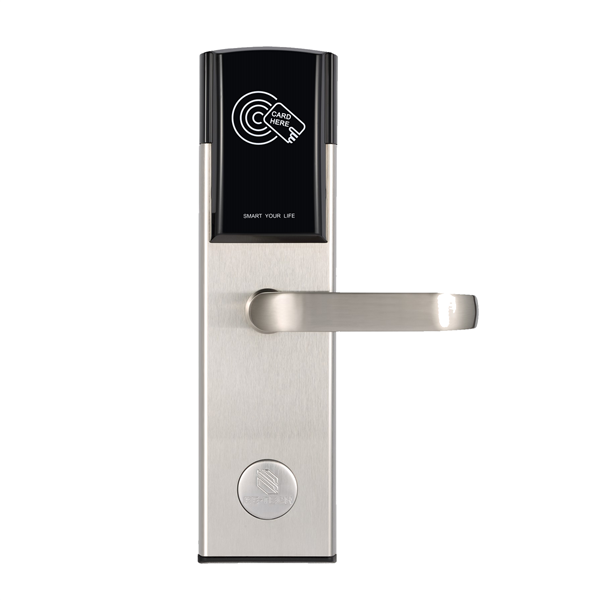

ELECTRONIC HOTEL LOCK, HOTEL DOOR LOCKS - BASE RFID  (9004 Series)

ELECTRONIC HOTEL LOCK -BASE RFID (9004 Series)

Descriptions:



• Be-Tech BASE RFID offers the latest and reliable
• Radio Frequency Identification (RFID) technology and high cost performance solution to go contactless Be-Tech electronic lock.
• Be-Tech BASE RFID offers the most flexible solution for future All-in-one card applications.

DOWNLOAD

PRODUCT DETAIL

Features:

  • Stand alone electronic lock with RFID technology.

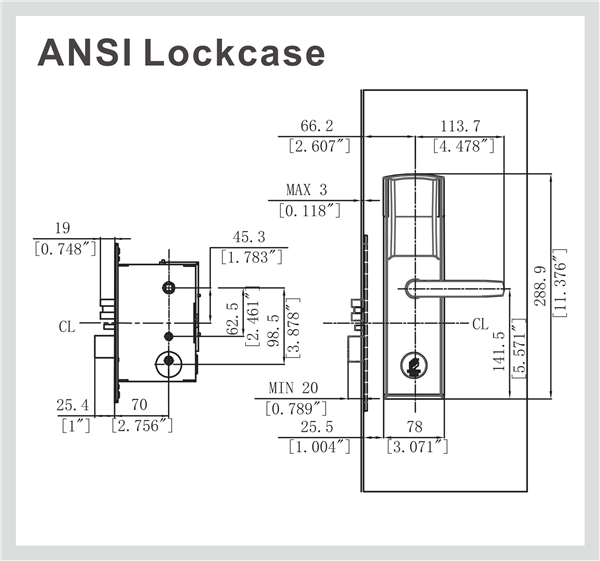

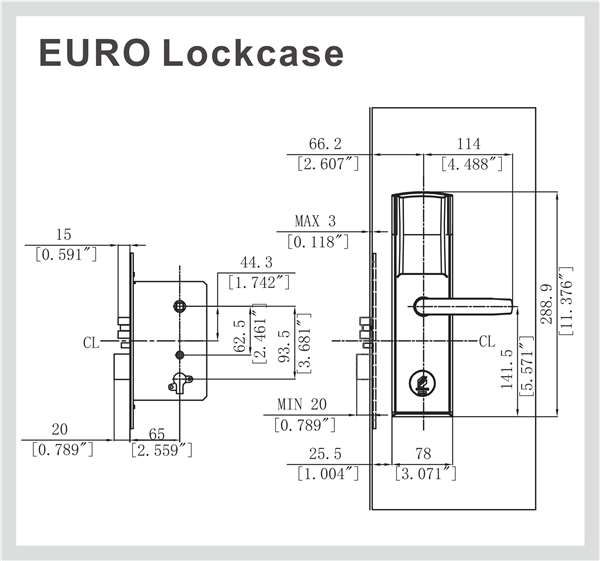

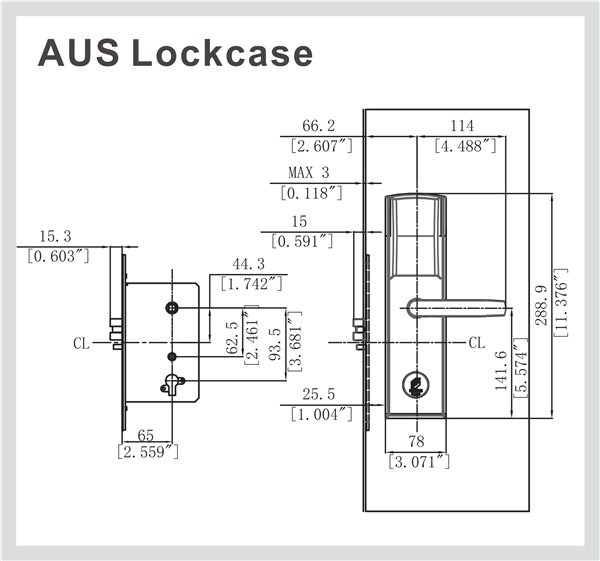

  • High security stainless steel mortise lockcase available in ANSI, AUS and EURO versions.
  • Zinc alloy handle with long lasting painting finish.
  • 3-point stainless steel latch construction with antifriction mechanism.
  • Mortise equipped 20mm throw high strength deadbolt.
  • Panic release function - the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.
  • ADA compliant (guest with physical disabilities).
  • Future proof re-programmable FLASH RAM lock memory.
  • Powered by four AA alkaline batteries that provide up to 1 year normal life time.
  • 1000 events audit trail.
  • Compatible with BIS HOTEL software platform.
  • High security mechanical override cylinder available.


Technical Data:

  • Power : 4 x 1.5V AA alkaline batteries
  • Battery Location:   Inside of the back lock
  • Material  Handles: Zinc Alloy
  • Lock body: Stainless steel quality SUS304
  • Metal Finishes: Silver, Mocha Red, Brown
  • Emergency Opening Options: Emergency Opening with Mechanical cylinder
  • Locking Mechanism: Electro-mechanical locking mechanism
  • Door Thickness: 35- 80mm (only for EURO mortise)
  • System Software Compatibility: BIS Hotel
  • Storage Temperature: -40°C~80° C, non-condensing environment
  • Tested Operating Temperature :Tested from :-20°C~66°C
  • Supported RFID Standard: ISO 14443 A (MIFARE Classic)

SPECIFICATIONS

1
2
3

Download

  • DownloadBASE RFID (9004)TYPICAL_Datasheet
    2.59MB
    Download
9004M---1
