Door Control Unit

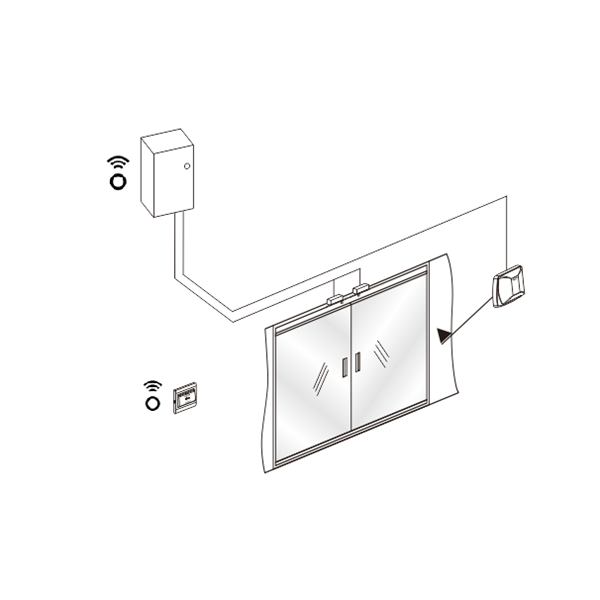

The Be-Tech Door Control Unit is the perfect solution to provide access control on common doors, such as parking barriers, health centers, gym room, conference room, staff entrances, guest night entrances and more, our Door Control Unit is fully compatible with Be-Tech electronic locking systems and provides better guest experience for your hotels.
Electrical Specifications:
| DCU Model | MJM | 2700M | – |
| Supply Voltage | 18VDC | 12VDC | – |
| Supply Current | 6A | 2A | – |
| Load current, output 1 | Max. 3A @ 12VDC | Max. 3A @ 12VDC | Resistive load |
| Load current, output 2 | Max. 3A @ 12VDC | – | Resistive load |
Product Detail
Features

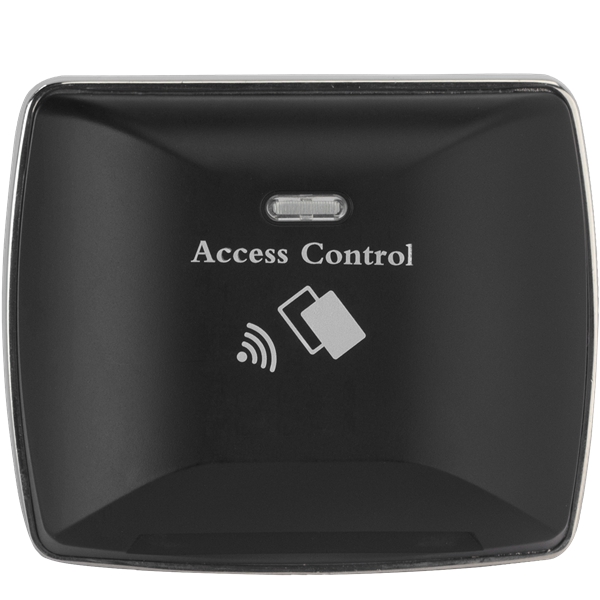

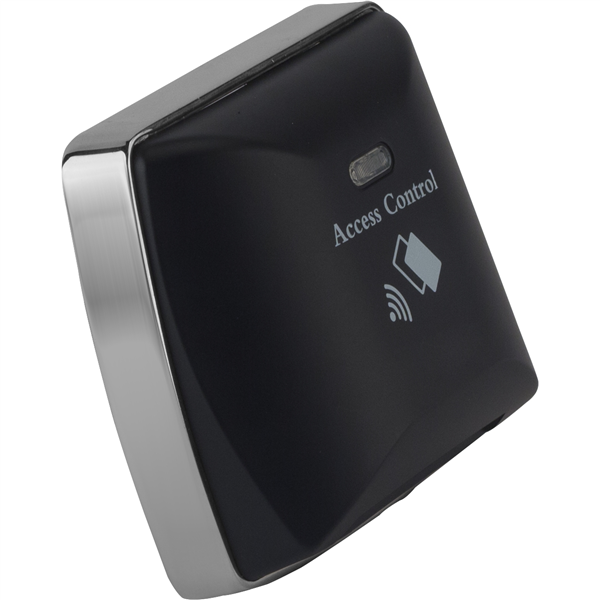

- Modern reader design in matte black color(for MJM model)
- Compatible with twins-reader mounting on passage door both side (optional to use)..
- Snap-on mounting design easy to fix for surface mounted installation.
- Inward wireless 'Door Exit' switch is available to simple “out and go" for hotel guests.
- Compatible with BIS Hotel and BIS Locker systems.
- Can work with Electronic dropbolt, Electronic Magnet lock, Electronic strike.
Specifications
- Model MJM
1)Door Control Unit with reader. 2)Control box. 3)External Power supply. 4)Inward wireless Door Exit switch. - Model 2700M
1)Door Control Unit with reader. 2)External power supply. 3)Inward wireless Door Exit switch. - Dimension-MJM

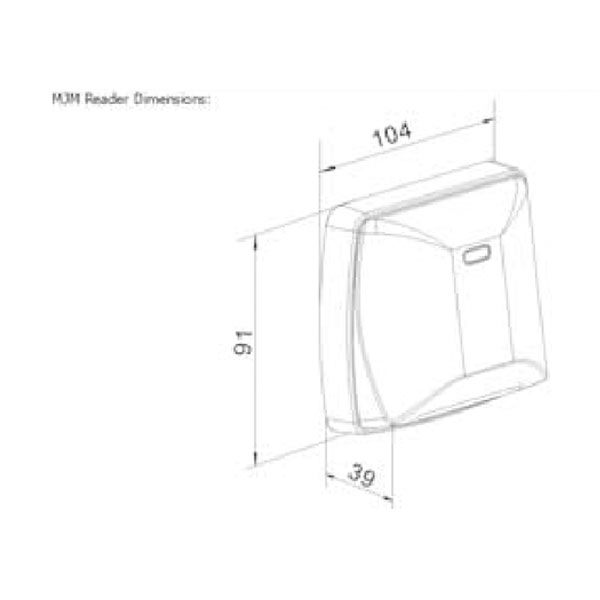

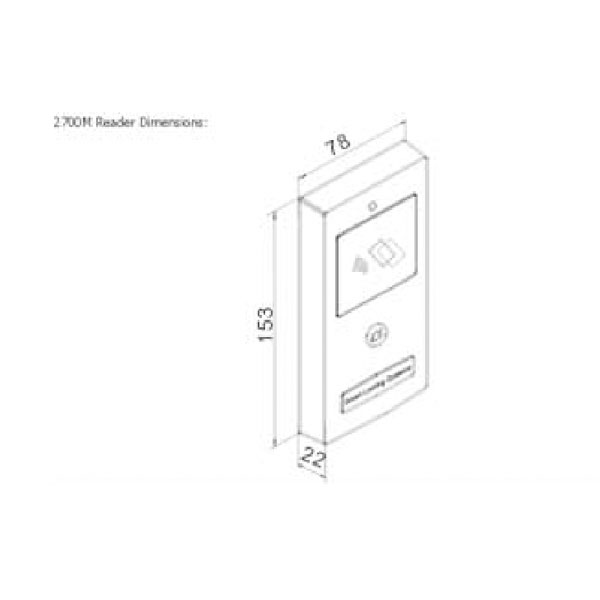

Reader: Height: 91 mm / 3.58 inch Width: 104 mm / 4.09 inch Depth: 39 mm/ 1.54 inch Relay box: Height: 310 mm / 12.2 inch Width: 160 mm / 6.3 inch Depth: 72 mm / 2.83 inch Dimension-2700M: Reader: Height: 153 mm / 6.02 inch Width: 78 mm / 3.07 inch Depth: 22 mm / 0.87 inch
Dimensions:
Specifications:
