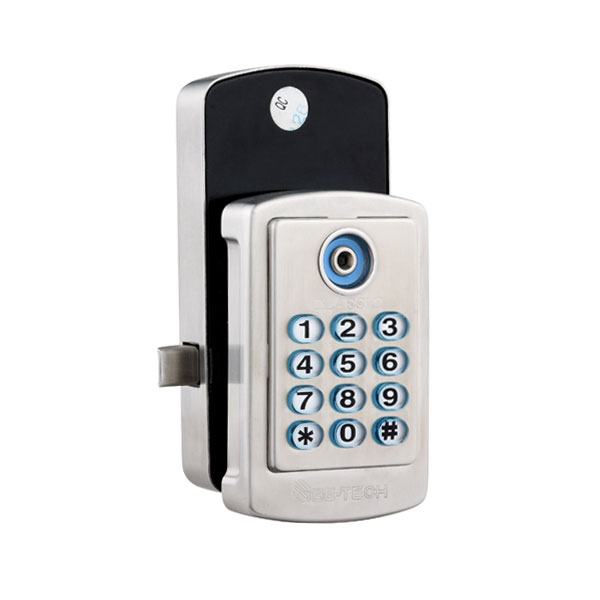

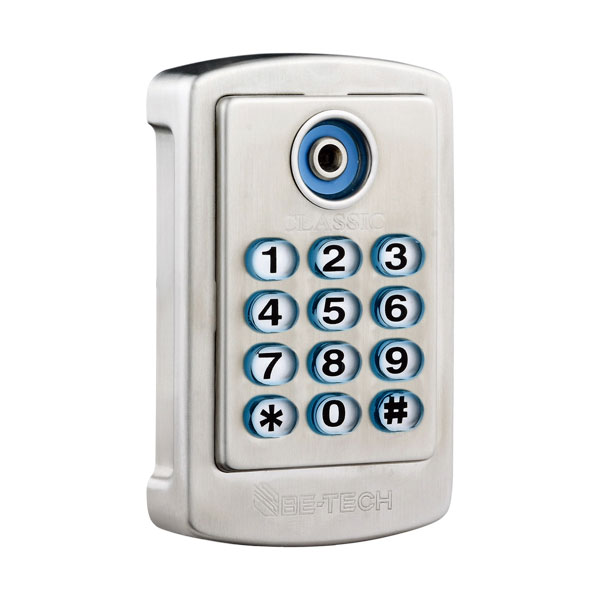

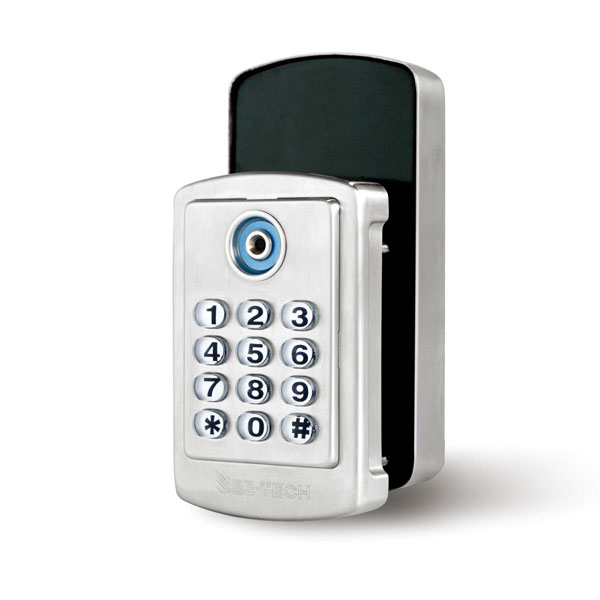

Electronic Cabinet Lock – Cyber Digit Classic
All the benefits of the Be-Tech Cyber Digit Classic (3100DL) but tougher and more robust for challenging environment. With additional programming features, stainless steel material, and improved number of operations, the Cyber Digit Classic (3100DL) provides enhanced benefits to facilities managers looking to simplify access control without the need of keys.
Specification:
The locks is supplied without factory preset codes & iButton keys
iButton keys have to order separately
Owner key (Red): 1 group
Master key (Blue): 3 group
User code: 1 group
User key (Black): 1 group (Optional)
Program both iButton keys & codes after lock has been installed
Product Detail
Features
- Private Function
This is the most common function and used where the same code will be repeatedly used, e.g a pupil in a school or an employee with the same locker in the workplace. - Public Function
The locker locks operates with a single user code. The guest enters a personal code with 4~9 digit to locks the lock. The same code is entered to open the lock before being erased and ready for next user. This function is used for short term, multi occupancy applications, e.g a locker in a gym center.
Specifications
- Power
4 x 1.5 AA Batteries - Operations
15,000 Openings - Low battery
When lock signals "Low Battery" there will be 100 additional openings - Memory
Non-Volatile memory will be retained when changing batteries - Battery Override
A battery case can be plug in external round socket - Material

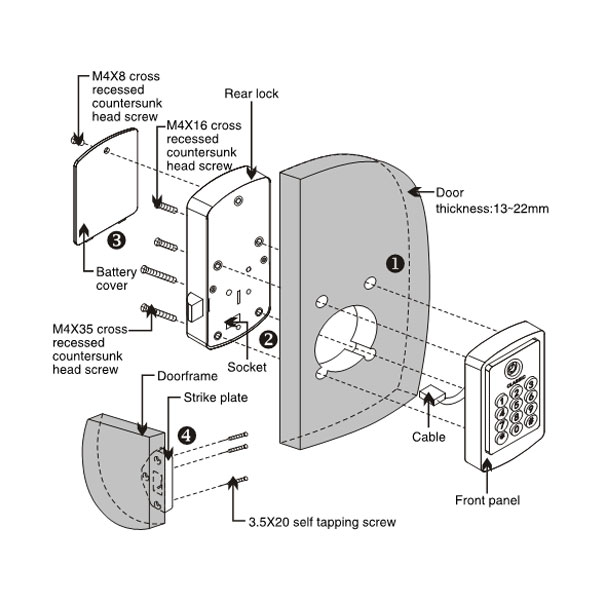

Stainless steel - Door thickness
12mm (0.47'') up to 22mm (0.87'') - Buttons
12 individual square buttons - Functions
Private or Public - Fitting options
New or retrofit - Finish
Silver (Brushed Stainless Steel) - Accessories available
iButton, Override battery case - Codes & Keys
Cyber Digits Class has 4 code & key levels Owner key, Master key User code or User key - Unlocking feature
Automatic motor driving - Net Weight
554g - Gross Weight
1278g (2 locks / box) - Packing
10 boxes / ctn. (20 locks / ctn) - Carton Size
435mm x 245mm x 180mm

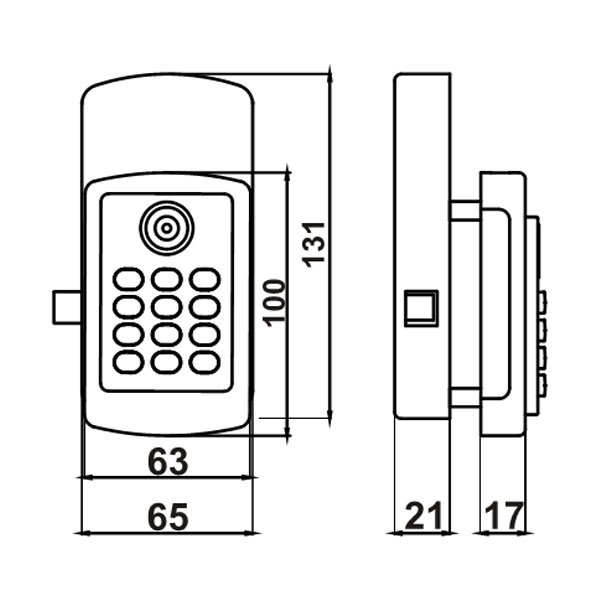

Dimensions:
Specifications:
