ELECTRONIC HOTEL LOCK -VISUAL III RFID (V5 Series)

Descriptions:

  • Be-Tech VISUAL III RFID series is the latest electronic locks that use simple, fashionable and comfortable design.
  • Be-Tech VISUAL III RFID series is especially designed for the modern and fashionable hotels with the desire of making sure the lock perfectly blends into the fashionable hotel environment.
  • The sparkling bright spot, Not just the looks". With the combination of Be-Tech VISUAL III RFID series matte black finish, it allows architects and designers maximize hotel's fashion sense and enhance user experience to a new level.
DOWNLOAD

PRODUCT DETAIL

Features:

  • Stand alone electronic lock with RFID technology.

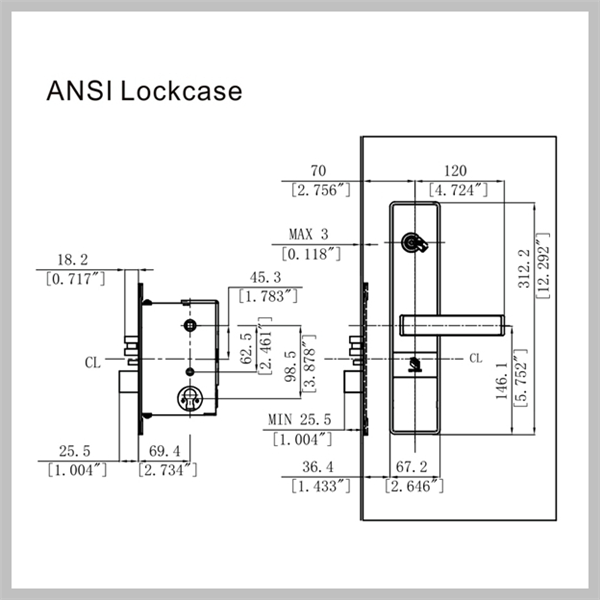

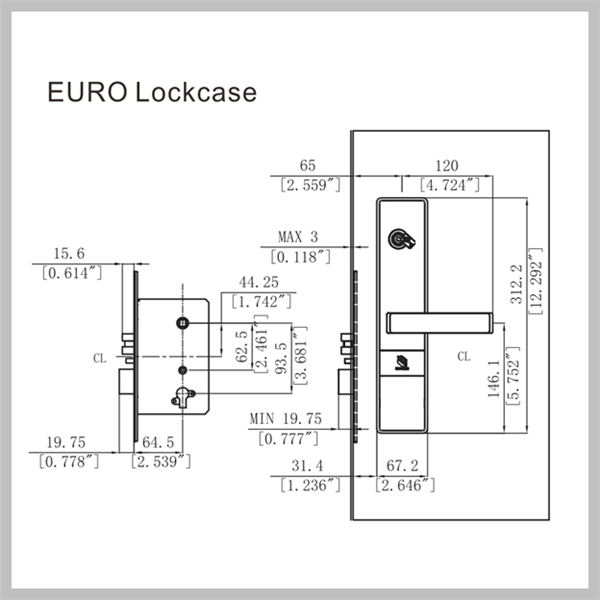

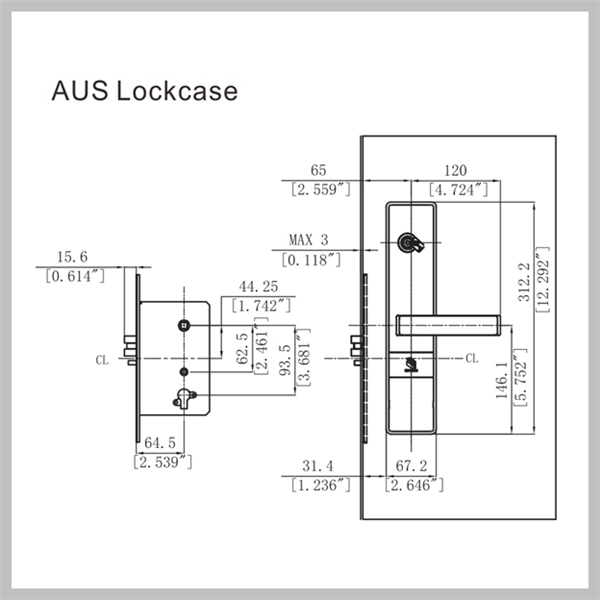

  • High security stainless steel mortise lockcase available in ANSI, AUS and EURO versions.
  • 3-point stainless steel latch construction with antifriction mechanism.
  • Mortise equipped 20mm throw high strength deadbolt.
  • Panic release function - the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.
  • ADA compliant (guest with physical disabilities).
  • Future proof re-programmable FLASH RAM lock memory.
  • Powered by four AA batteries that provide up to 1 year normal life time.
  • 1000 events audit trail.
  • Compatible with BIS HOTEL software platform.
  • High security mechanical override cylinder available.



Technical Data:

  • Power: 4 X 1.5V AA alkaline batteries
  • Battery Location: Inside of the back lock
  • Material: Handles: Aluminum Alloy
  • Lock body: Aluminum Alloy
  • Metal Finishes: Matte Black
  • Emergency Opening Options Emergency Opening with Mechanical cylinder
  • Locking Mechanism : Electro-mechanical locking mechanism
  • Door Thickness: 35-80mm (only for EURO mortise)
  • System Software Compatibility : BIS Hotel
  • Storage Temperature : Workable -20°C~80*C: non-condensing environment
  • Tested Operating Temperature Tested from -25°C~70°C
  • Supported RFID Standard : ISO 14443 A (MIFARE Classic)

SPECIFICATIONS:

v51
V52
V53

Download

  • DownloadVisual Ⅲ RFID_Datasheet_English_JAN_2021_LP
    2.57 MB
    Download
  • DownloadElectronic Hotel Locking System_Brochure_English_2023LP
    7.8MB
    Download
V5-Series600
