RFID Elevator Controller
RFID Elevator Controller 02
RFID Elevator Controller 03
RFID Elevator Controller 04

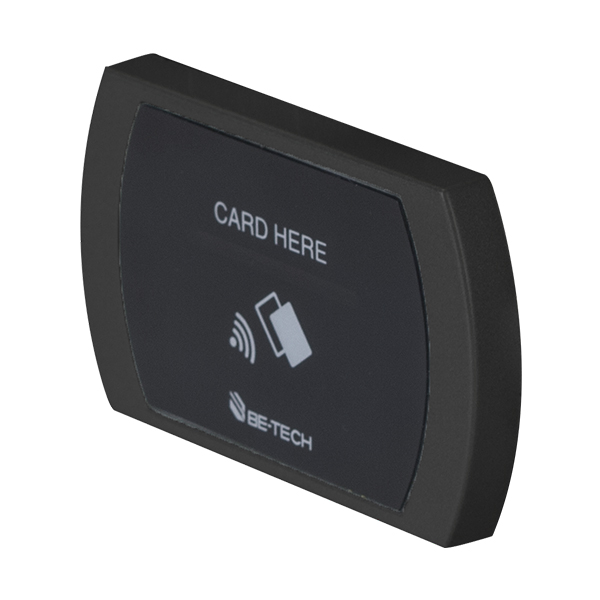

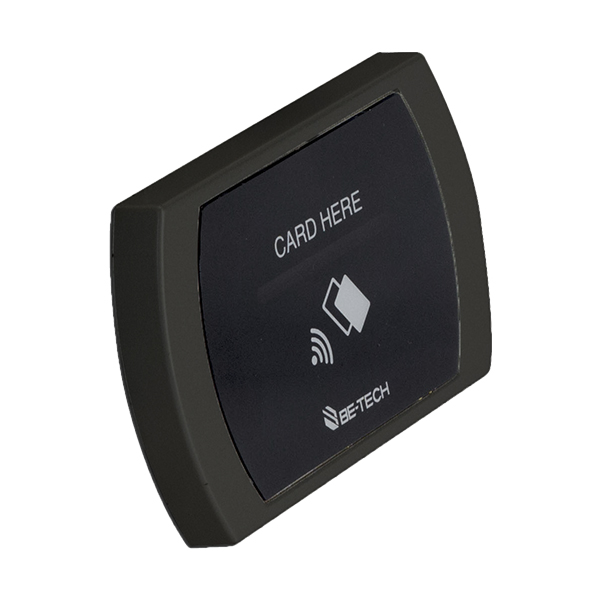

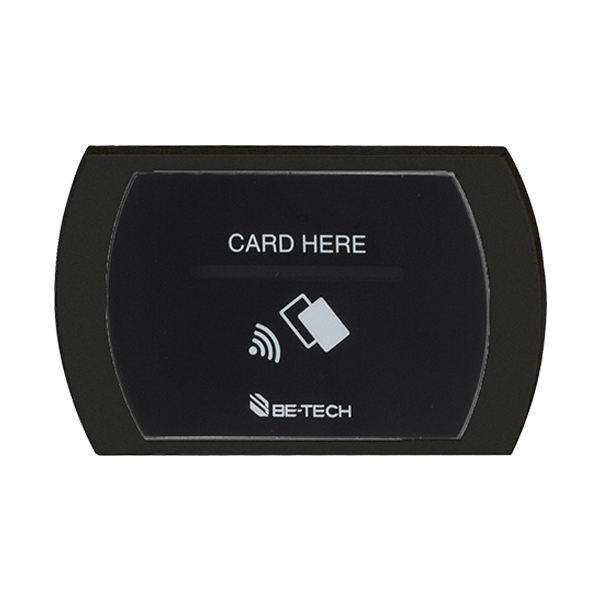

RFID Elevator Controller

Descriptions:

Be-Tech's RFID Elevator Controller is designed to fit into elevator panels and operated off line, it fully compatible with BIS Hotel, and will enhance the security level for the hotel, as only guest with valid keycard will have authority to the elevators.

Technical data:

Floors

Relay boards

Max. current

Max. voltage

Relay box

1~8

1 Piece

1A

30V DC

\

9~16

2 Piece

1A

30V DC

1 unit

17~24

3 Piece

1A

30V DC

1 unit

25~32

4 Piece

1A

30V DC

1 unit



DOWNLOAD

PRODUCT DETAIL

Features:

  • Modern and flat design reader, less drilling work on elevator panel.
  • Available to limit access to floors according to each guest and staff keycard's authority.
  • 8 relay outputs board with extendable feature, suitable for the high-rise hotel.
  • Selectively to limit access to floors or limit to elevator's button panel.
  • Fully compatible with BIS Hotel
RFID Elevator Controller 08

Benefit:

  • Each relay box can install 4 piece relay boards.

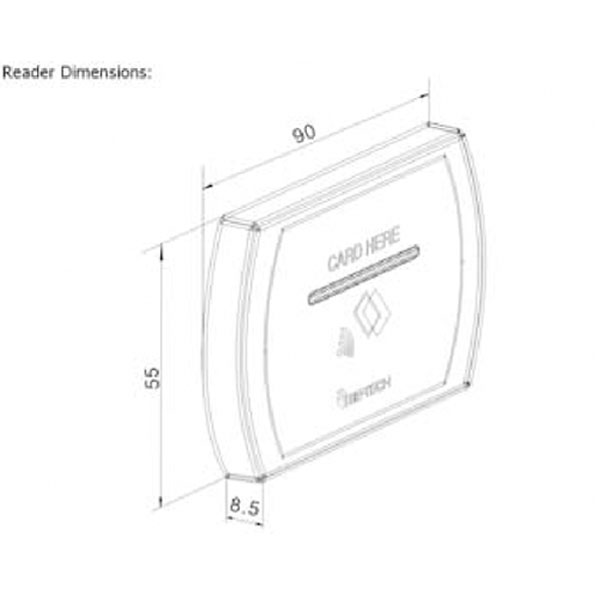

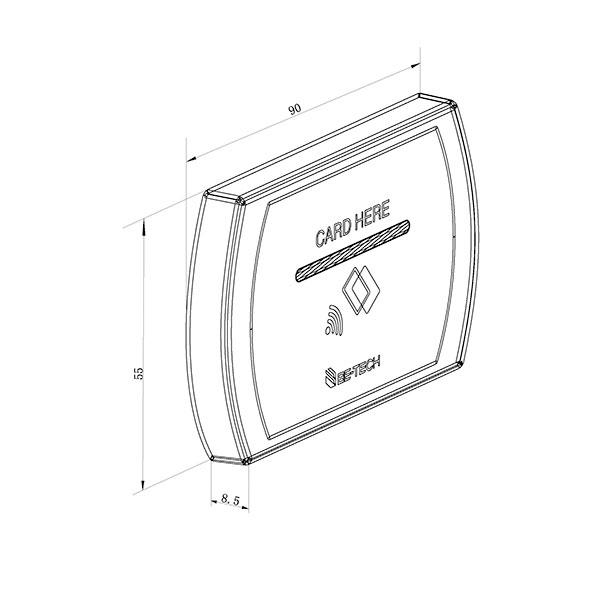

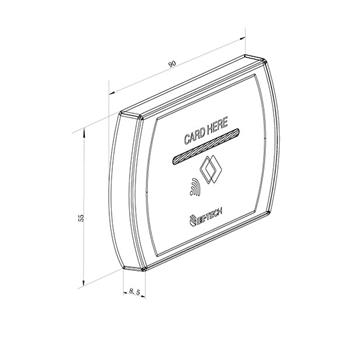

  • Dimension(H x W x D):
    RFID reader: 90 x 55 x 8,5 (mm)
                          3,54 x 2,17 x 0,33 (inch)
    Relay box: 370 x 230 x 72 (mm)
                      14,57 x 9,06 x 2,83 (inch)

Each complete unit, supplied individually packed, consists of:

• RFID reader with front control case
• Relay board
• Dust proof cover
• 1.5m three-core cable
• 4m six-core cable
• Relay box in black steel (*)
• 5m three-core cable (*)
• 16m six-core cable (*)

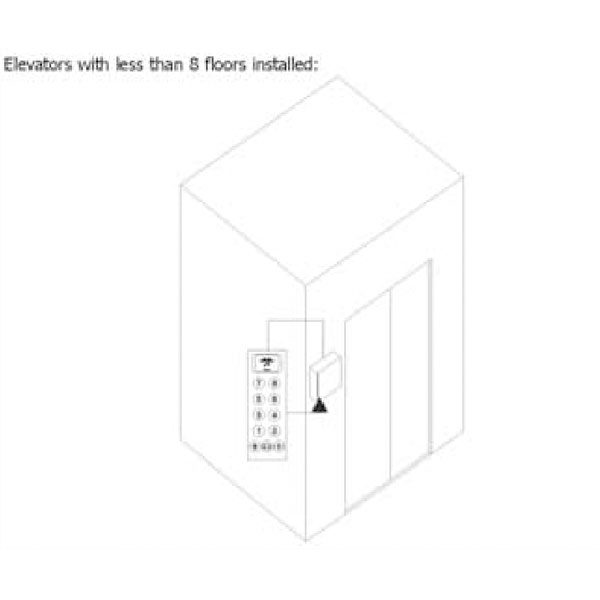

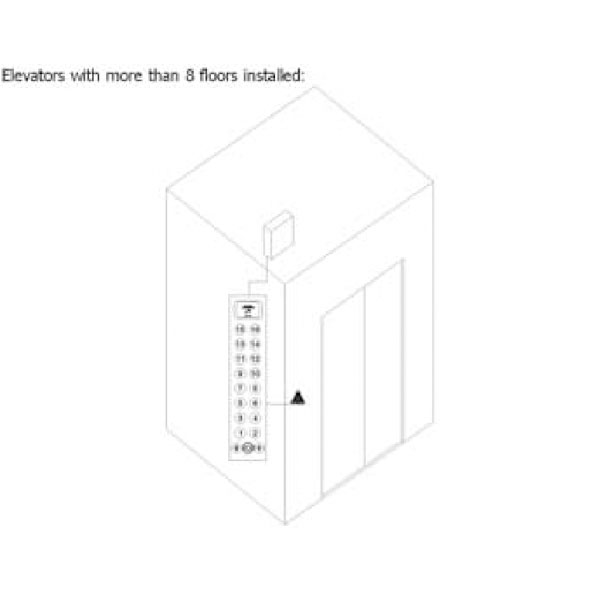

(*) only for the elevators with more than 8 floors.

Additional relay boards must be ordered in addition if needed.

Dimensions:

RFID Elevator Controller 02
RFID Elevator Controller 03
RFID Elevator Controller 04

SPECIFICATIONS

RFID Elevator Controller 05
RFID Elevator Controller 06
RFID Elevator Controller 07

Download

  • Download RFID Elevator Controller_Datasheet_English_2013Jun20_LR
    144 KB
    Download
  • Download Electronic Hotel Locking System_Brochure_English_07Oct17_LR
    1.96 MB
    Download
