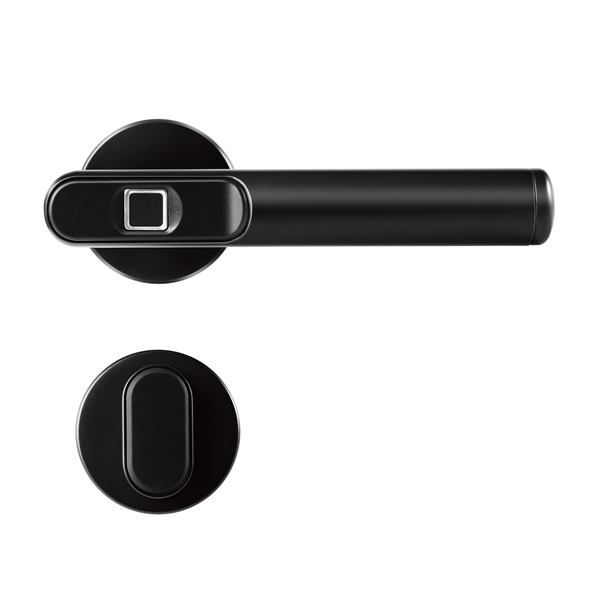

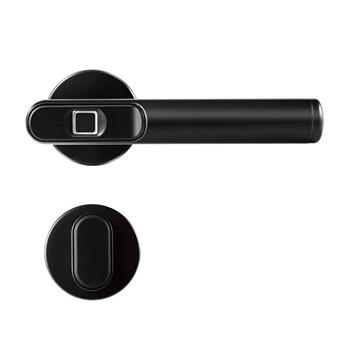

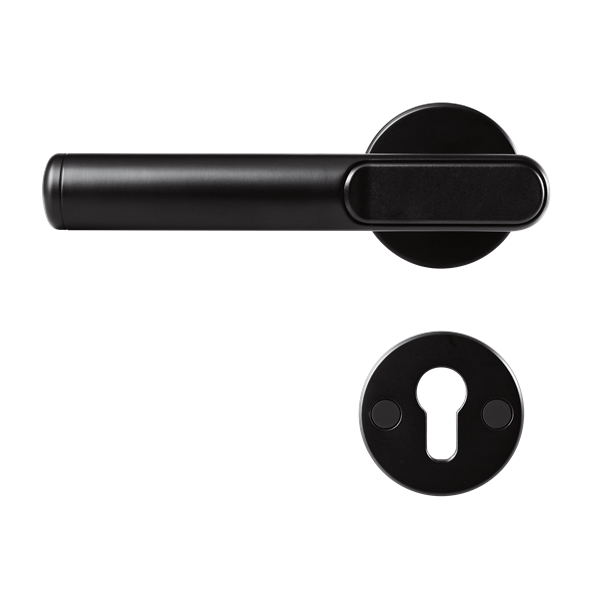

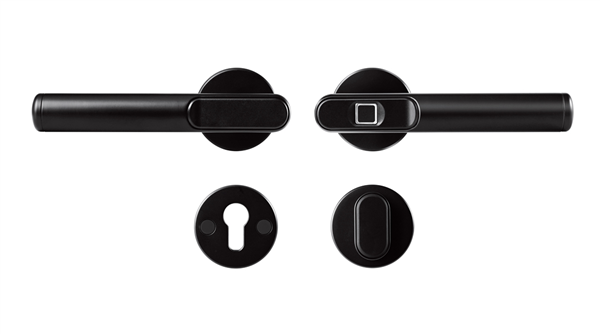

FINGERPRINT AND RFID CARD DIGITAL DOOR LOCK-R665FM-00

FINGERPRINT DIGITAL DOOR LOCK-R665F-00

Descriptions:

• Premium Fingerprint Digital Door Lock With anti-panic.
• 38mm Installation Hole For EN Mortise Suitable for EN mortise retrofit




DOWNLOAD

PRODUCT DETAIL

Features:

  • One-touch Fingerprint Verification
    One-touch Fingerprint verification technology has been applied to conveniently read a fingerprint in one shot.
  • Operation status notification
    Whenever any operation is made, the LED indicator informs you what is happening through different colors and signs.
  • Automatic locking
    Door lock will be locked automatically after opening door a few seconds. (Manual operation is also available)
  • Easy To Install
    Easily to replace the existing mechanical lock to a fingerprint lock.
  • Anti-panic exit system
    For convenience and in case of emergency, it allows you to open the door by simply turning its handle from inside.
  • Low battery warning signal
    A voice reminder of low battery during door access will alert you to replace batteries.


Specifications:

  • Model: R665F-00
  • Front(Front Body): 168.5(W)×60(H)×71(D)mm (with handle),
  • Back(Back Body): 168.5(W)×60(H)×71(D)mm (with handle),
  • Door Thickness: Applicable Range 35-60mm
  • Material: Aluminum Alloy + ABS
  • Fingerprint Up to 20 Groups (3 Master Fingerprints & 17 User Fingerprints)
  • Battery 3X1.5V AAA alkaline batteries(Operating voltage: 3.3~4.5V);
  • Applicable Area For indoor use only .Maximum torque of handle no more than 25 N.M. Door weight on no more than 100 Kg.

Dimensions:

FINGERPRINT-AND-RFID-CARD-DIGITAL-DOOR-LOCK5-R665FM-00
FINGERPRINT-AND-RFID-CARD-DIGITAL-DOOR-LOCK2-R665FM-00

Download

  • Download R665F-00__Fingerprint-_LeverSet_Catalogue_May05.2020_LR
    3.59 MB
    Download
FINGERPRINT-AND-RFID-CARD-DIGITAL-DOOR-LOCK1-R665FM-00
