Electronic Cabinet Lock - Cyber Digit Slim

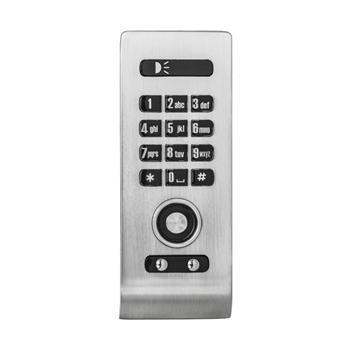

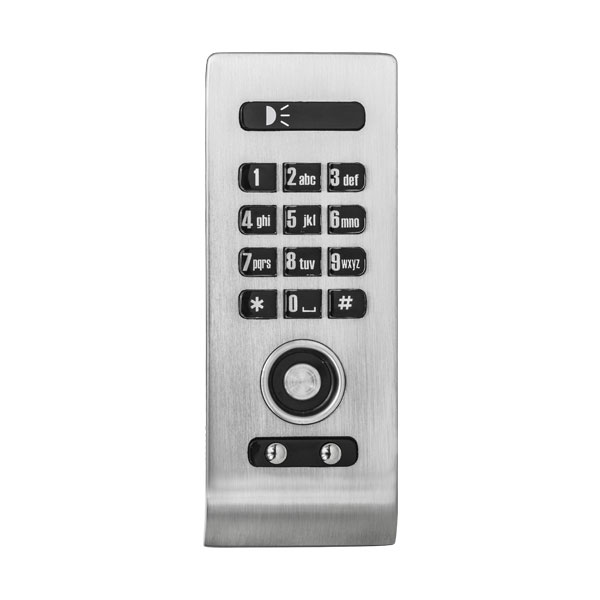

Cyber Digit Slim 03

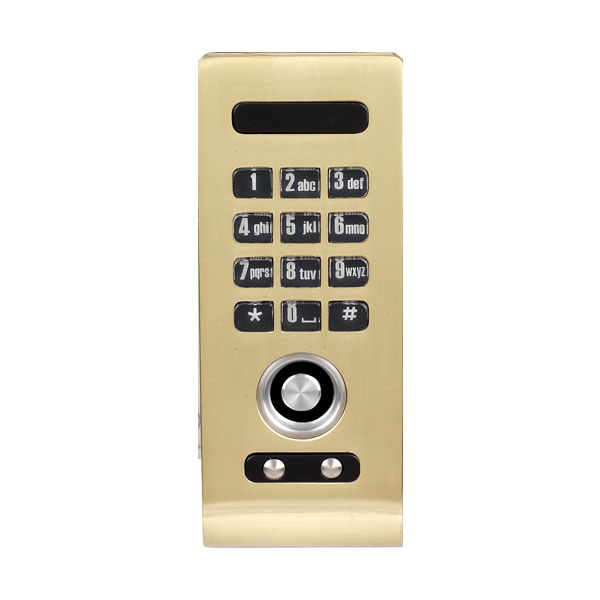

Cyber Digit Slim 04

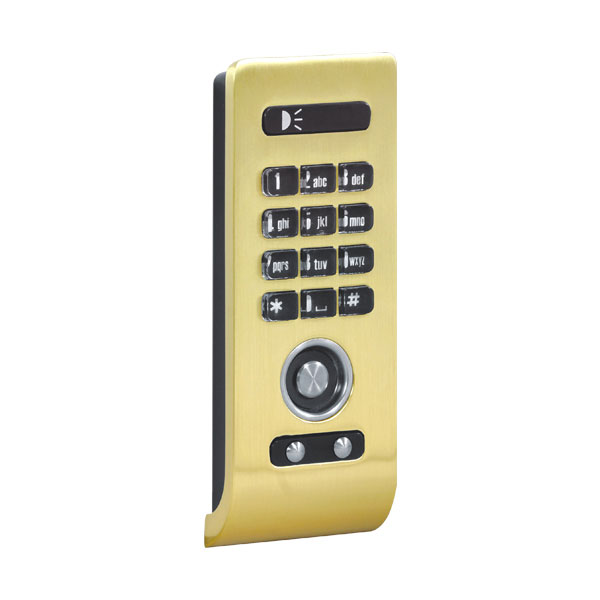

Cyber Digit Slim 02

Electronic Cabinet Lock - Cyber Digit Slim

Descriptions:

Be-Tech Cyber Digit Slim (C1000D) is the latest product to join the Cyber range of digital locker lock replacing keys on lockers, cabinet & cupboard.

The lock allows multiple user to be accessed and can be programmed codes & keys are required to open the lock.

Codes & iButton keys

The locks is supplied without factory preset codes & iButton keys
iButton keys have to order separately
Owner key (Red): 1 group
Master key (Blue): 5 group
User code: 1 group
User key (Black): 1 group (Optional)

Program both iButton keys & codes after lock has been installed

DOWNLOAD

PRODUCT DETAIL

Technical Specification:

  • Power: 4 x 1.5 AA Batteries
  • Operations: 15,000 Openings
  • Low battery: When lock signals "Low Battery" there will be 100 additional openings
  • Memory: Non-Volatile memory will be retained when changing batteries
  • Battery Override: A 9v battery can be placed against external contacts
  • Material: Zinc Alloy
  • Door thickness: 12mm (0.47'') up to 22mm (0.87'')
  • Buttons: 12 individual square buttons
  • Functions: Private or Public
  • Fitting options: New or retrofit
  • Finish: Silver
  • Accessories available: iButton
  • Codes & Keys: Cyber Digits Slim has 4 code & key levels
                             Owner key, Master key or Master code
                             And User code or User key
  • Unlocking feature: Automatic motor driving
  • Net Weight: 440g
  • Gross Weight: 900g (2 locks / box)
  • Packing: 10 boxes / ctn. (20 locks / ctn)
  • Carton Size: 425mm x 265mm x 175mm
Cyber Digit Classic 08

Functions:

  • Private Function
    This is the most common function and used where the same code will be repeatedly used, e.g a pupil in a school or an employee with the same locker in the workplace.
  • Public Function
    The locker locks operates with a single user code. The guest enters a personal code with 4~9 digit to locks the lock. The same code is entered to open the lock before being erased and ready for next user. This function is used for short term, multi occupancy applications, e.g a locker in a gym center.

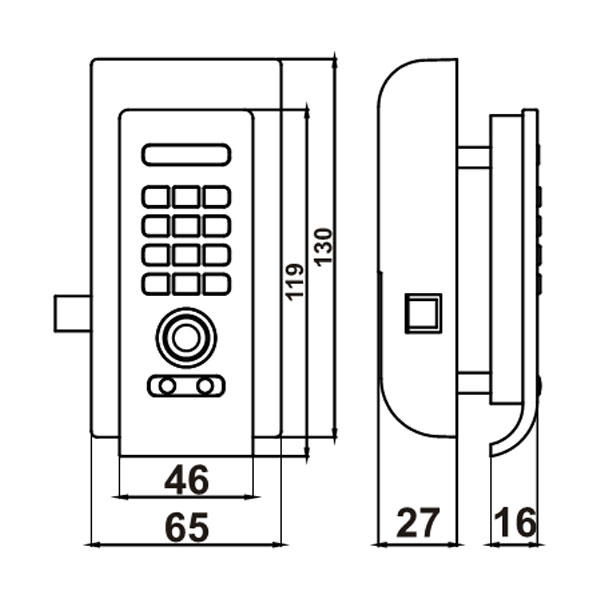

Dimensions:

Cyber Digit Slim 02
Cyber Digit Slim 03
Cyber Digit Slim 04

SPECIFICATIONS

Cyber Digit Slim 05

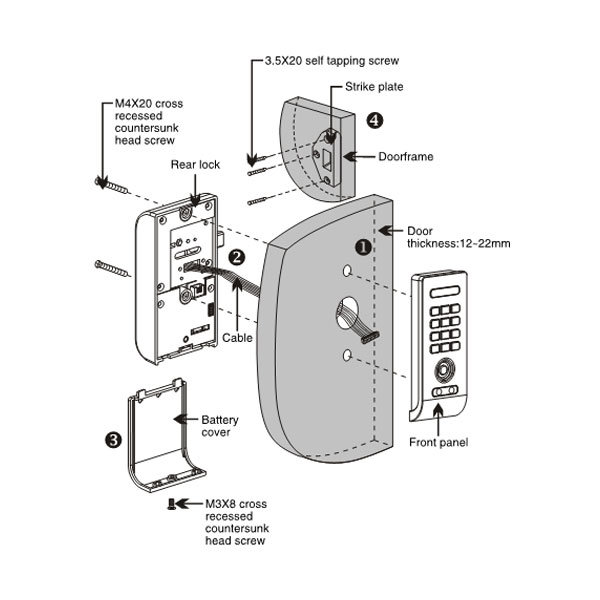

Cyber Digit Slim 06

Download

  • Download Cyber Digit Slim_CabinetLock_TechSpec_21Mar17_LR
    589 KB
    Download
  • Download Cyber Digit_CabinetLock_Brochure_19Mar.20_LR
    2.06 MB
    Download
